RV Step Gearbox Assembly "A" with 14 NM Motor, Low Torque 10789172
RV Step Gearbox Assembly "A" with 14 NM Motor, Low Torque 10789172
SKU: 08571509
2 in Stock, Ready to Ship.
In stock items ship same day, 4:30 pm EST cut-off time. Next day delivery is available for domestic orders.
Out of stock items typically ship within 5-7 business days, but please contact us for precise lead times.
Couldn't load pickup availability
Product Description
Product Description

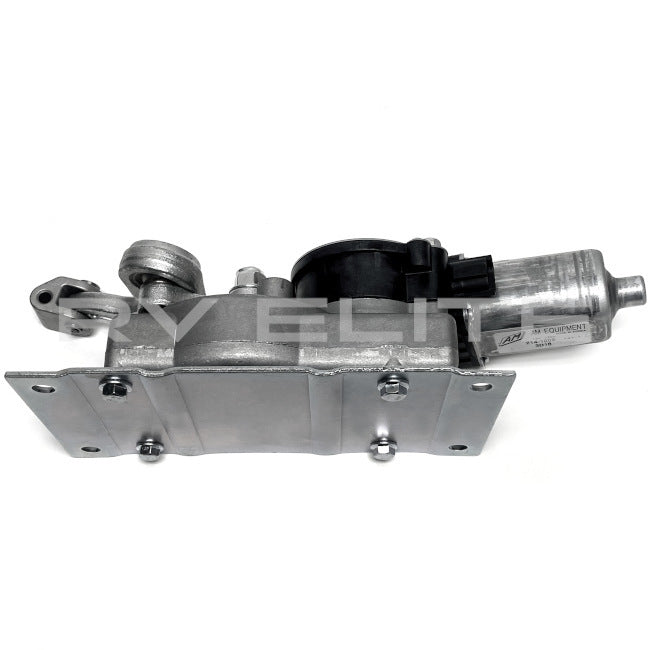

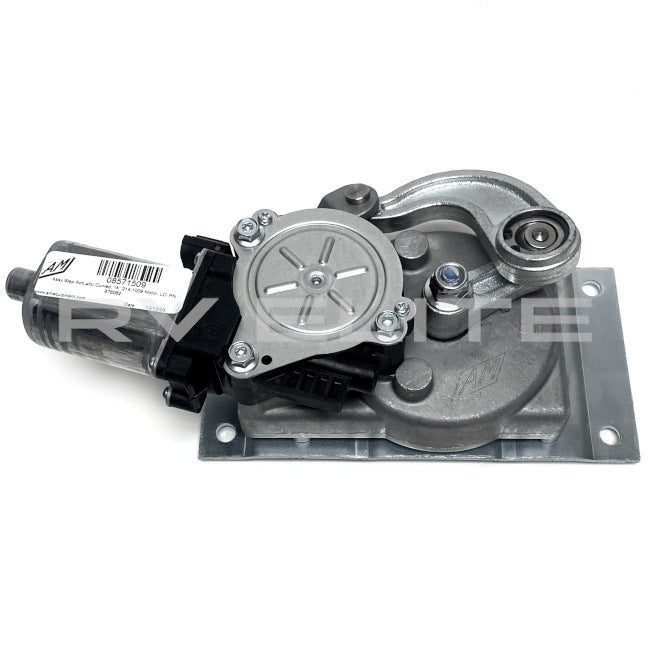

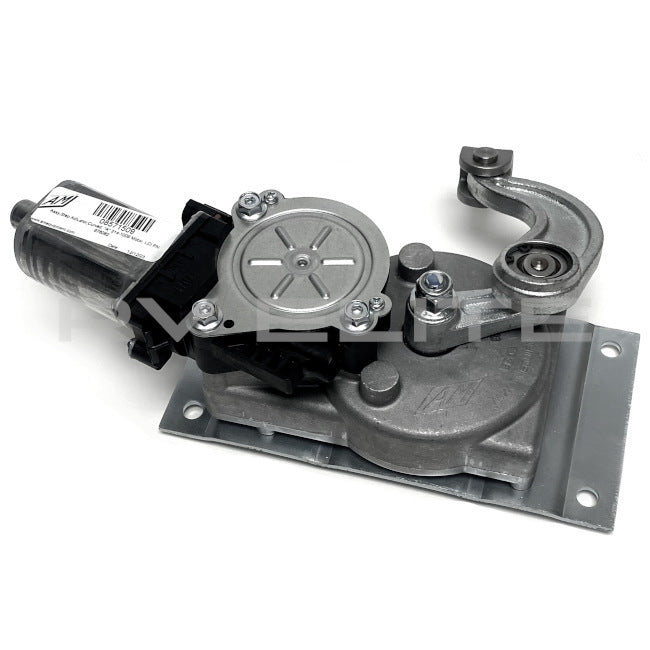

RV replacement gearbox assembly with curved linkage "A", and pre-installed 12V low torque step motor. Typically used for single and double Kwikee step configurations (1 or 2 step assemblies). Original replacement part - Lippert 676062. REV number 10789172. RV Elite part number 08571509.

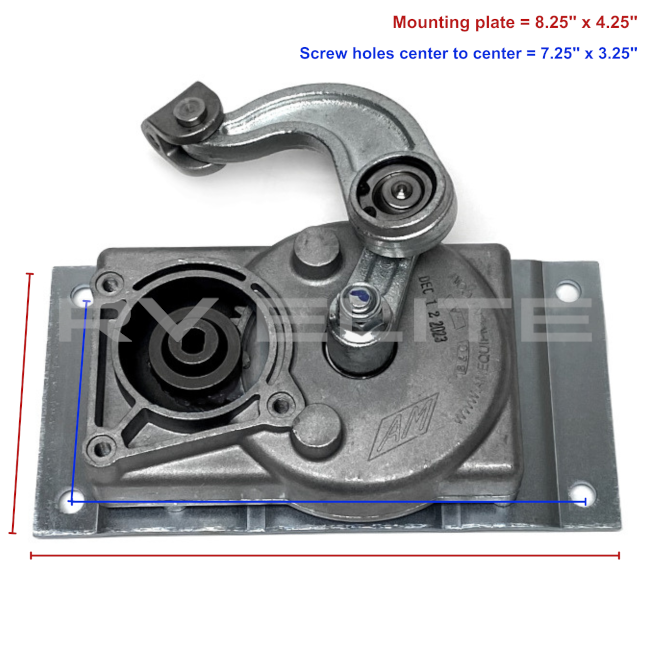

14 NM rating, 5:1 gear ratio. 110 mm (4.25”) x 210 mm (8.25”) mounting plate. 17 mm diameter double flat power take-off shaft. Durability tested to 50,000+ actuation cycles with linkage. 13 rpm speed range at gearbox.
Gearbox linkage without motor: 08571508 (click here).
Step motor only: 214-1009 (call to order)
*If you have a triple or quad step assembly, see part 08571512 (click here).
